TR24-AQ Mechanical Felling Wedge


TR24-AQ Mechanical Felling Wedge

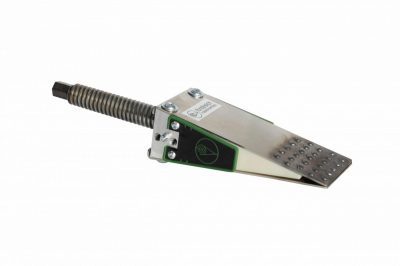

The TR24-AQ is a mechanical felling wedge that was specially designed for use with smaller impact wrenches. With a weight of only 1,9 kg, a lifting height of 4 cm and a pressure force of approx. 12 tons, it is ideally suited for cutting medium-strength wood for the harvester or on steep slopes.


  • Patented spindle arrangement: this allows us to install a very robust 24 mm spindle and still keep the weight low.
  • Pressure wedge plastic with 18°: compact and easy to change if you do saw into it.
  • Sturdy 2 mm spring steel plates with 80 mm wide contact surface in the wood.
  • The spindle and bearings are designed for the toughest applications

For optimal performance and weight we recommend to operate the TR24-AQ with the Milwaukee M18FMTIW2F/P impact wrench with 745Nm . In this complete set the TR24-AQ with this driver, along with an 18V 5 Ah battery weighs a total of only 4.5 kg and can therefore be carried comfortably on the user’s belt (see available accessories).

Supplied ready to use with a high impact socket.

Note: The extendable ratchet is no longer available (although customers are free to fit their own if required).

Max. Compressive Force: 12 Tonnes
Weight Without Driver: 1.9 kg
Max Lift: 4.0 cm
Max NM: 750 Nm


With KWF professional marking!


Additional information

Weight 1.9 kg

Bare Unit, With Milwaukee CHWIF34
